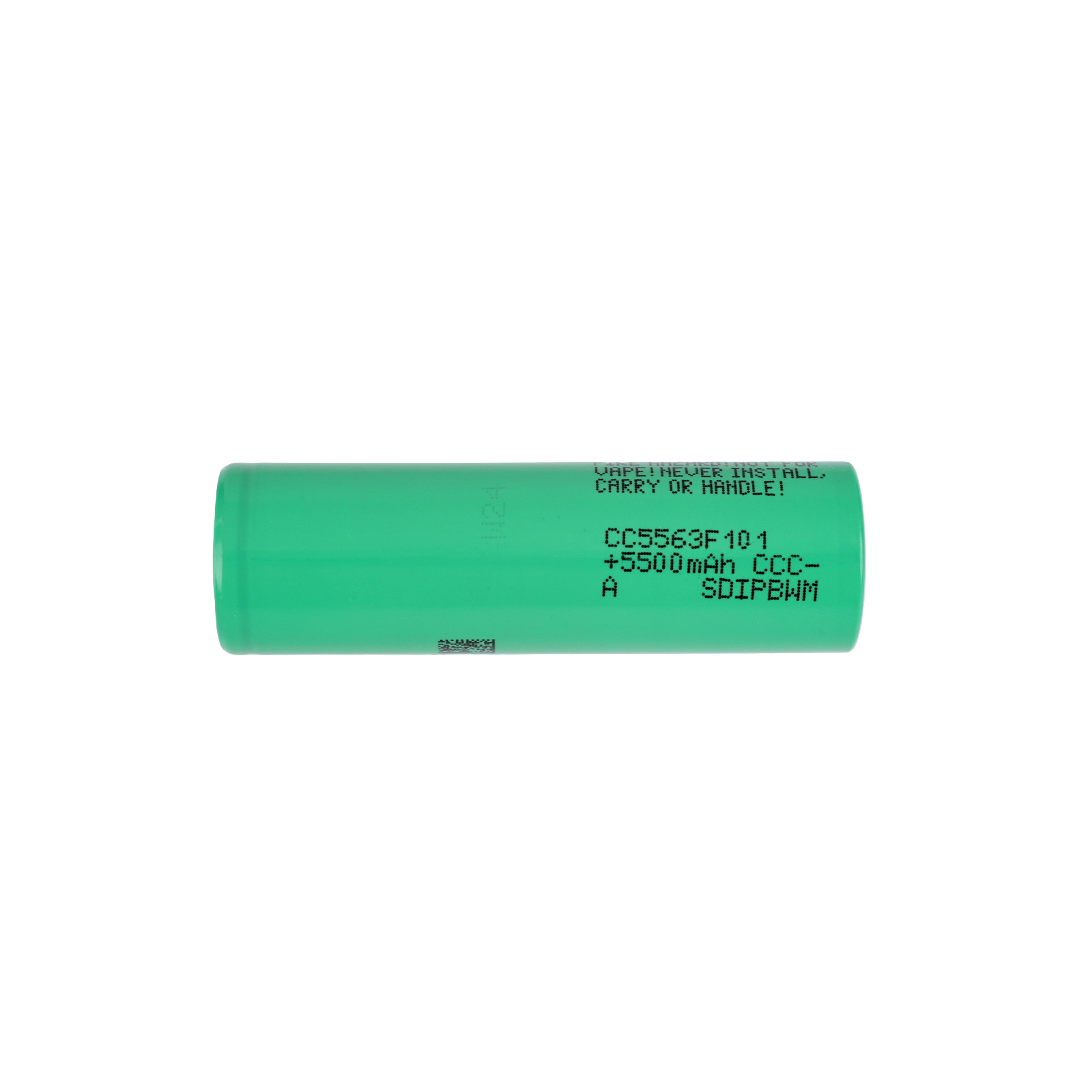

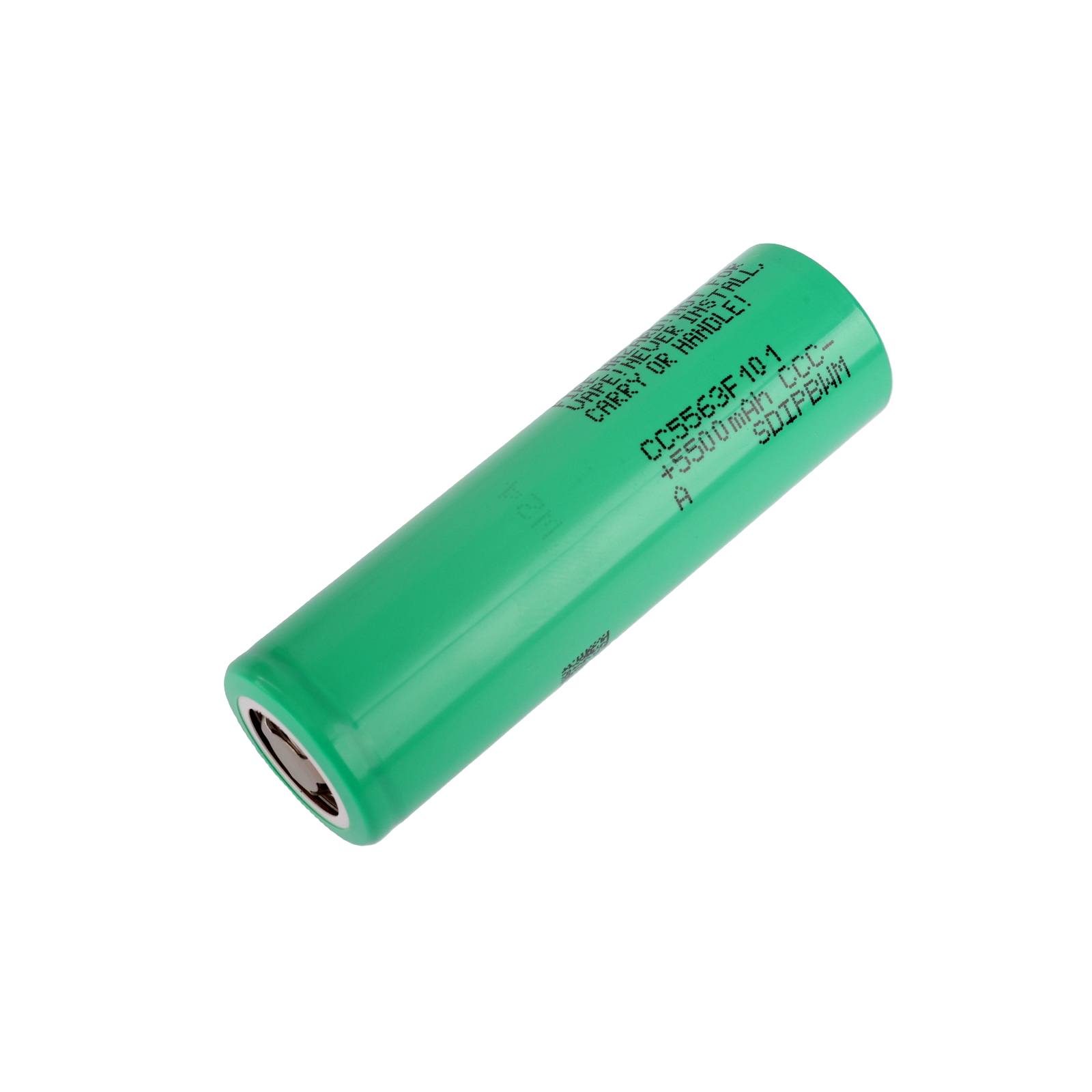

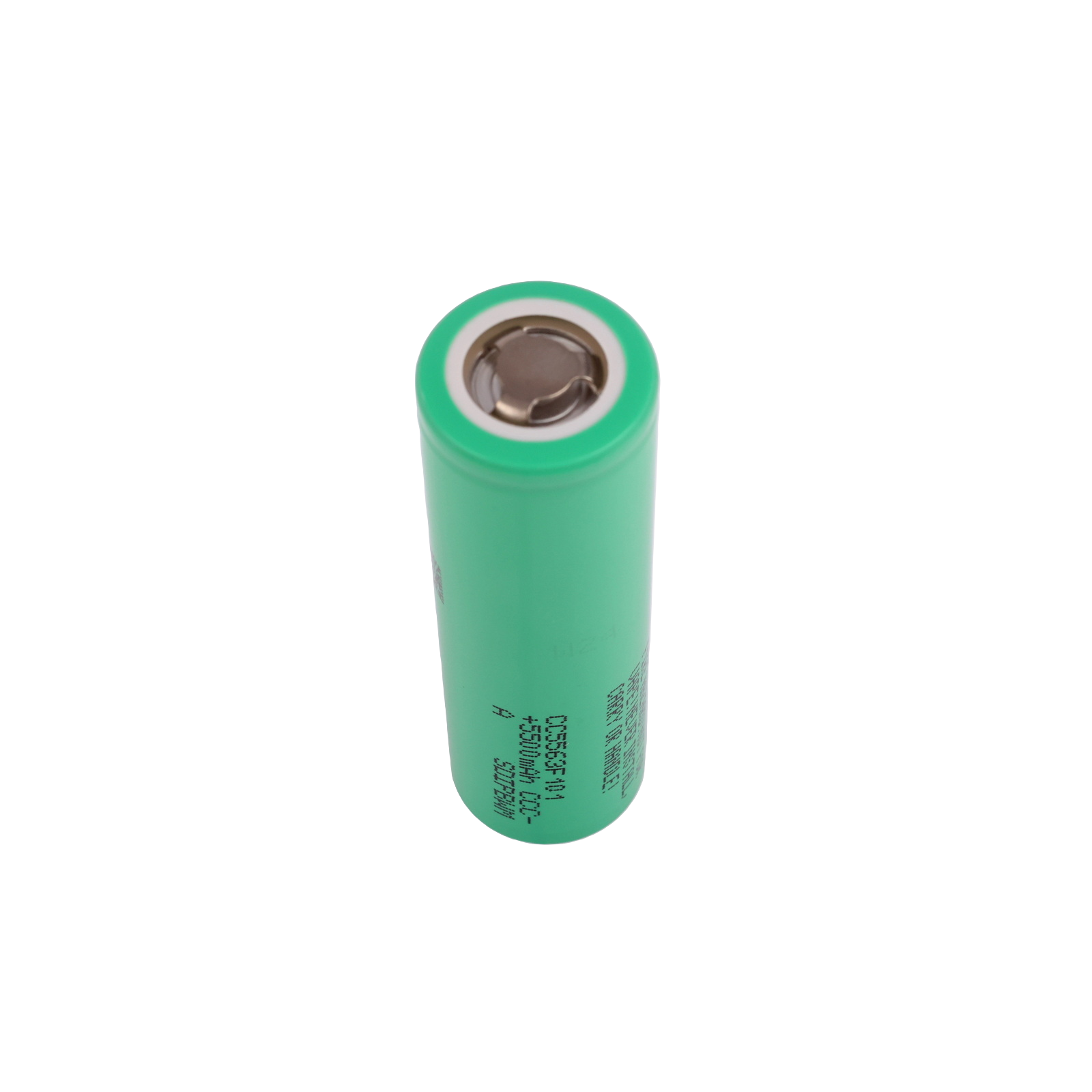

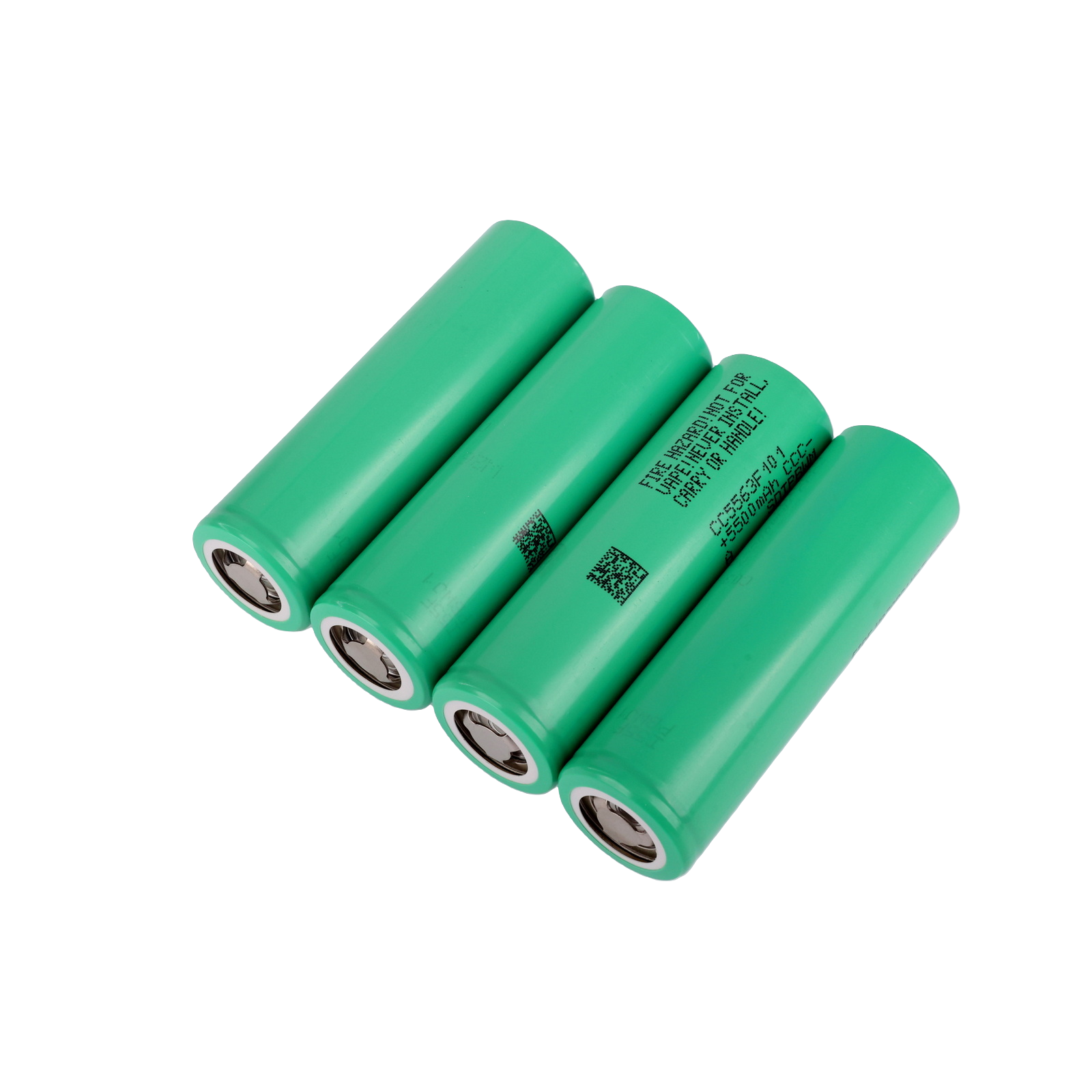

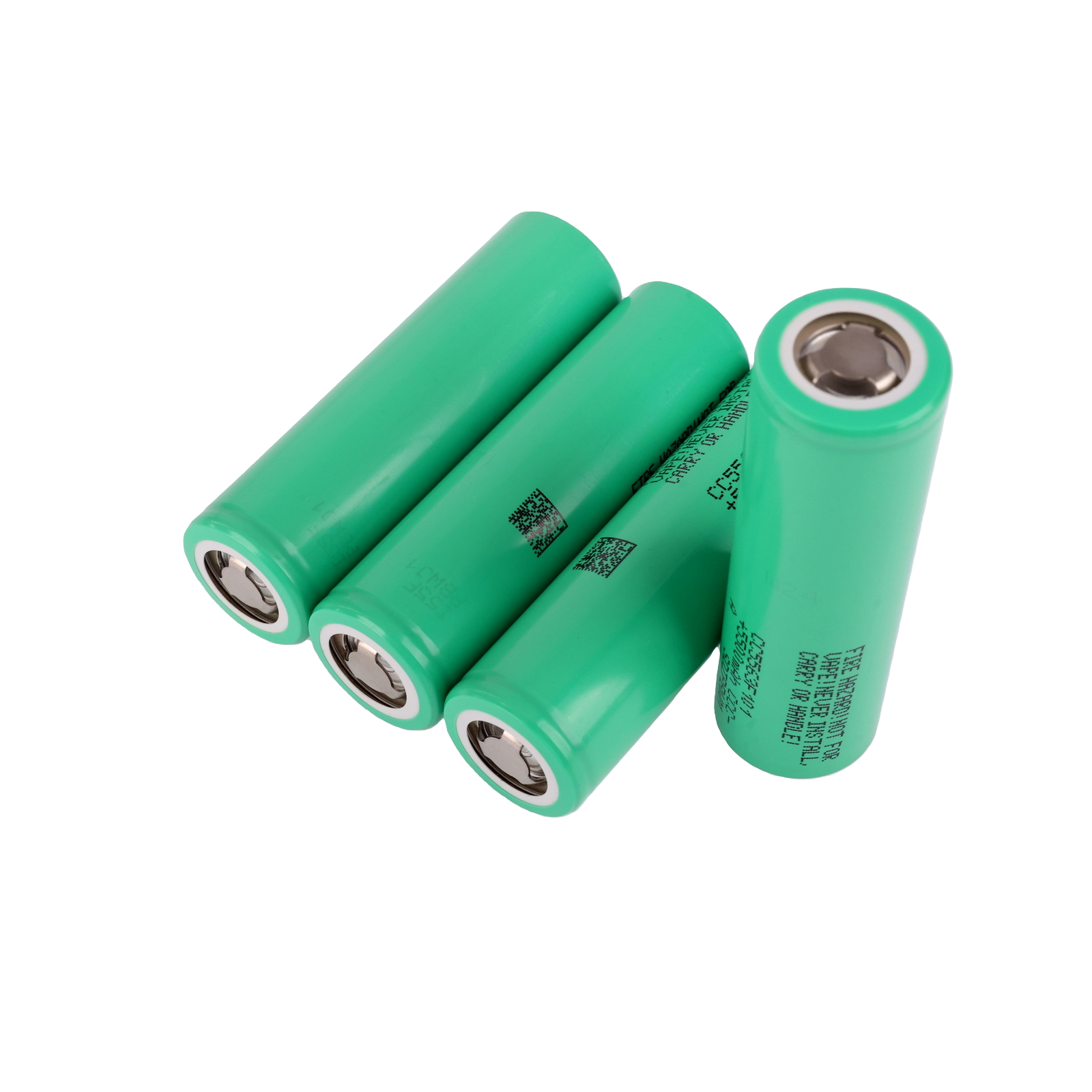

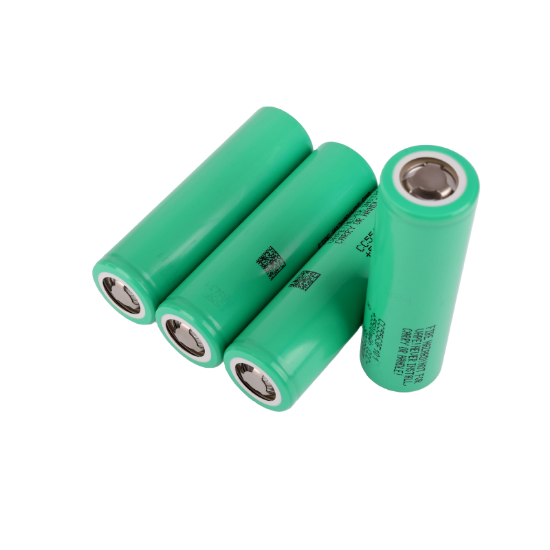

Samsung 21700 58E Li-Ion Rrechargeable Battery Cell 5.5AH 4pcs

Samsung 58E

SKU: 109081143525

Manufacturer: Samsung

$24.00

Qty:

Lithium batteries are regulated dangerous goods requiring special logistics. Shipping is available to the US, Canada, Australia and most European countries only. For buyers from other countries, please inquire before placing an order.
2. For certain countries, buyers are required to handle customs clearance at the airport or port by themselves. Please ensure you are capable of doing so, and if you have any queries, feel free to contact me before making the purchase.
3. For batteries purchased in bulk, I ensure the time interval between the production date and the shipping date is no more than 180 days; for non-bulk battery purchases, the interval is capped at 360 days – this is, of course, the worst-case scenario.

Action for 4pcs battery

Item	Specification
Standard Discharge Capacity	Min. 5,330 mAh (19.4 Wh)
	Typ. 5,490 mAh (20.0 Wh)
	Charge: 0.5C (2,665 mA), 4.2 V, 0.02C cut-off @ RT
	Discharge: 0.2C (1,066 mA), 2.50 V cut-off @ RT
	*1C = 5,330 mA
Rated Discharge Capacity	Min. 5,170 mAh
	Charge: 0.5C (2,665 mA), 4.2 V, 0.02C cut-off @ RT
	Discharge: 1C (5,330 mA), 2.50 V cut-off @ RT
Charging Voltage	4.2 V
Nominal Voltage	3.64 V
Charging Method	CC-CV (Constant Current – Constant Voltage)
Standard Charging Current	0.5C
Standard Charging Time	4 hours
Maximum Charge Current	1C (Not recommended for long-term cycle use)
Maximum Discharge Current	2C Continuous discharge
Maximum Discharge Current	3C Peak / Non-continuous discharge
Discharge Cut-off Voltage	2.5 V
Cycle Life	≥ 4,136 mAh after 500 cycles (80% of rated capacity)
Cycle Life	Test condition: 0.5C charge / 1C discharge, 2.5 V cut-off @ RT
High Temperature Storage Performance	Capacity recovery ≥ 90% after 60℃ / 20 days storage
Cell Weight	Max. 74 g
Cell Dimensions	Diameter: Max. Φ21.78 mm
Cell Dimensions	Height: Max. 71.00 mm
Operating Temperature	Charge: 0℃ ~ 45℃
Operating Temperature	Discharge: -10℃ ~ 60℃
Long-term Storage Stability	80% capacity recovery:
	1 year (-20℃ ~ 23℃)
	3 months (-20℃ ~ 45℃)
	1 month (-20℃ ~ 60℃)
